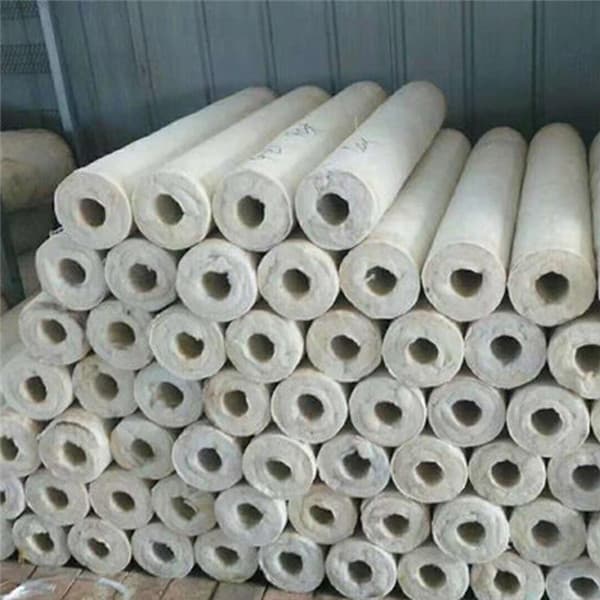

Ceramic Fiber Tube

Catalog: Ceramic Fiber Products | 2021-02-01

1. Alternate Name: Aluminum Silicate Tupe
2. B.D: 100-300kg/m3

√ Prevent the pipeline from open fire, melt splash
√ Stable chemical properties
√ Good heat insulation

Product Details

Features

  • High temperature resistance, good heat insulation.
  • Prevent the pipeline from open fire, melt splash, high temperature heat radiation.
  • It can effectively avoid personnel suffering from the burning injury of high-heat pipelines (lines) in the high-temperature area.
  • Stable chemical properties, can withstand the erosion of a variety of chemical substances.

Application

Ceramic fiber tube is widely used on cable, hose, tubing, exhaust pipe and so on in the fields of metallurgy, petrochemical, electric power, automobile, aviation and other fields under high temperature environment.

Size

  • Inner diameter: φ18-529mm.
  • Wall thickness: 30mm-150mm.
  • Length: 1000mm.
  • It is also customized according to your drawing.
TypeASFT-1ASFT-2
Service temperature, ℃10001260
B.D, kg/m3100-180150-300
Thermal conductivity
w/(m·k)
0.034(20℃)
0.09(400℃)
0.12(600℃)
0.127(600℃)
0.20(1000℃)
Shot content, %, Φ>0.25mm1113.6
Permanent liner change, %
(After 24 hours)
3.5
600℃
2
1000℃
