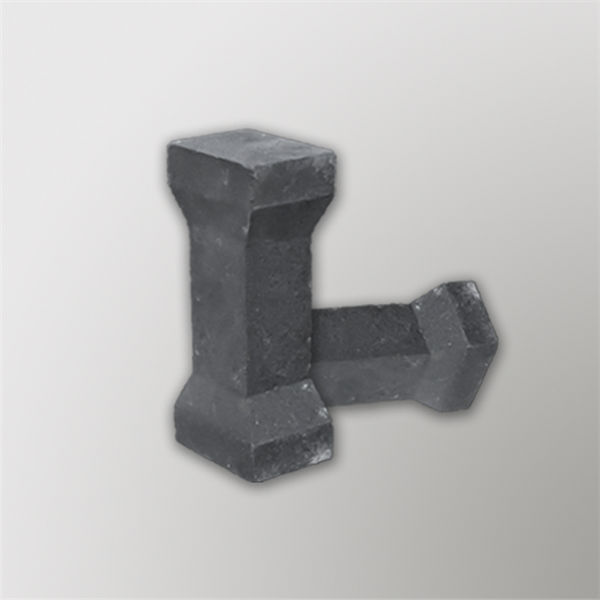

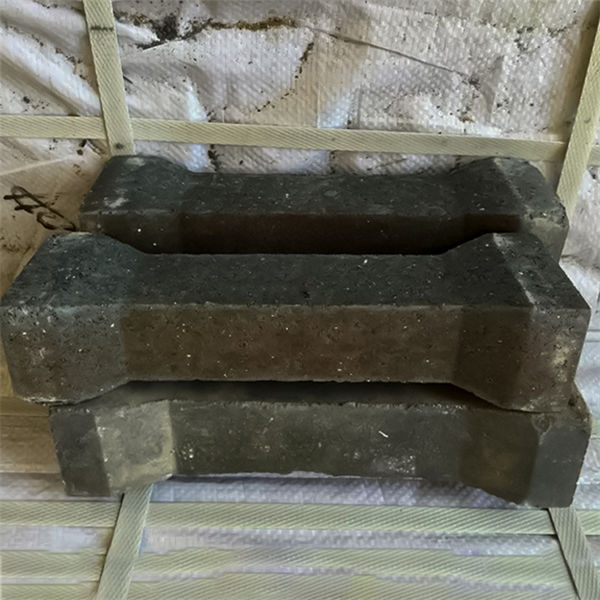

Silicon Carbide Columns RBSIC / SiSiC
RBSIC / SiSiC silicon carbide columns has good thermal conductivity, which can significantly save energy consumption without increasing the weight of kiln car.
- Type: Column, Beam, Batt, Plate, Roller, Tube, Sagger, Nozzle
- Customized size and index
- Recrystallized SiC: >99.5%
- Bulk density: 2.45-2.65g/cm3
- Bending strength: >100MPa
- Compression strength: >600MPa
- Max working temperature: 1650℃
- Good thermal conductivity
- Long service life
Product Details
RBSIC / SiSiC silicon carbide columns is applicable to the load-bearing structural frame in tunnel kiln, shuttle kiln and other industrial kilns. The reaction sintered silicon carbide column has large bearing capacity at high temperature, no bending deformation after long-term use, and long service life. It is an ideal kiln furniture for sanitary porcelain and electric porcelain industries.
RBSIC / SiSiC silicon carbide columns has good thermal conductivity, which can significantly save energy consumption without increasing the weight of kiln car.
Design of RBSIC（SiSiC）Columns
|
Size of section |
Outer contour |
Opening shape |
Opening orientation |
||||||||
|
Long |
Wide |
Wall thickness |
Oval |
Rectangle |
Reinforced Rectangle |
Square hole |
Circular hole |
Single row hole |
Double row hole |
Alternate hole |
Parallel hole |
|
50 |
30 |
7 |
√ |
√ |
√ |
√ |
√ |
||||
|
55 |
35 |
6 |
√ |
√ |
√ |
√ |
√ |
√ |
|||
|
57 |
32 |
6 |
√ |
√ |
√ |
√ |
√ |
||||
|
60 |
30 |
6 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
60 |
35 |
6 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
60 |
35 |
7 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
80 |
30 |
7 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
80 |
40 |
7 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
100 |
80 |
12 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||
|
140 |
120 |
12 |
√ |
√ |
√ |
√ |
√ |
√ |
|||
