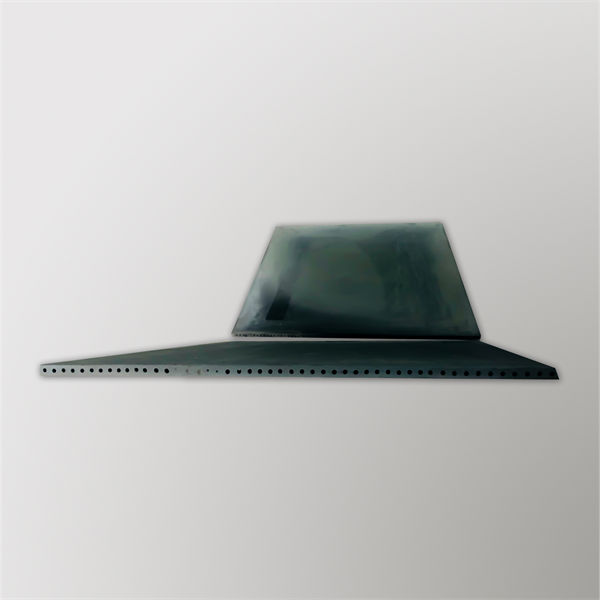

Silicon Carbide Plates RBSIC / SiSiC
RBSIC / SiSiC silicon carbide plates has good thermal conductivity and heat resistance, and is widely used in household ceramics, ceramic sanitary ware, microcrystalline glass, powder metallurgy…
- Type: Plate, Beam, Batt, Roller, Tube, Sagger, Nozzle
- Customized size and index
- Recrystallized SiC: >99.5%
- Bulk density: 2.45-2.65g/cm3
- Bending strength: >100MPa
- Compression strength: >600MPa
- Max working temperature: 1650℃
- Good thermal conductivity
- Long service life
Product Details
RBSIC / SiSiC silicon carbide plates has good thermal conductivity and heat resistance, and is widely used in household ceramics, ceramic sanitary ware, microcrystalline glass, powder metallurgy, electronic ceramics, alumina ceramics, zirconia ceramics, high-temperature flue cover plate or partition, etc.
It can be made of square plate, round plate and various special-shaped plates. In addition, we can carry out high-temperature adhesive coating treatment on one or both sides of the ceiling plate according to user requirements.
| Technical index | Unit | Parameter |
| Recrystallized SiC content | % | > 99.5 |
| Bulk density | g/cm3 | 2.45-2.65 |
| Apparent porosity | % | <11 |
| Bending strength | MPa | >90-100 |
| Compression strength | MPa | >600 |
| Thermal expansion (20-1100℃) | 10-6K-1 | 4.7 |
| Thermal conductivity ( 500℃/h) | W/mK | 24 |
| Young's modulus | GPa | 240 |
| Max working temperature | °C | 1650 |
| Acid and alkali resistance | Excellent |
Product features:
- Save more than 20% of energy;
- High thermal conductivity;
- Good anti-gasification performance;
- Long service life;
- Thin wall, saving space and fuel in the kiln;
- Good heat resistance performance, suitable for fast firing high temperature kiln.
Loading of RBSIC（SiSiC）Beams
Bearing capacity of solid plate
| Long | Wide | Thick | Bearing capacity(Kg) |
| 255 | 255 | 5 | 83 |
| 600 | 100 | 6 | 20 |
| 600 | 210 | 6 | 42 |
| 710 | 220 | 6 | 37 |
| 850 | 200 | 6 | 28 |
Bearing capacity table of hollow slab
|
Size of Section |
Reinforcement quantity |
Concentrated loading |
||||
|
Long |
Wide |
Wall thick |
Sigle |
Double |
Multipe |
Kg/m |
|
110 |
20 |
5 |
√ |
√ |
130 |
|
|
110 |
30 |
7 |
√ |
√ |
286 |
|
|
120 |
30 |
8 |
√ |
√ |
328 |
|
|
120 |
30 |
6 |
√ |
√ |
290 |
|
|
130 |
20 |
5 |
√ |
√ |
√ |
153 |
|
180 |
40 |
5 |
√ |
√ |
√ |
578 |
|
200 |
12 |
3.5 |
√ |
89 |
||
|
200 |
40 |
5 |
√ |
√ |
√ |
639 |
